Technical drawing · PNG
GS20
Multi-view technical drawing of the GS20 unit, including plan, front and side elevations.
Goslyn Environmental Systems
CAD Blocks &
Technical Drawings
Explore technical drawings of Goslyn grease removal units. View each model from multiple angles or download the drawings for reference and project planning.
Model Drawings
Plan, front and side views for four Goslyn models.
Technical drawing · PNG
GS40

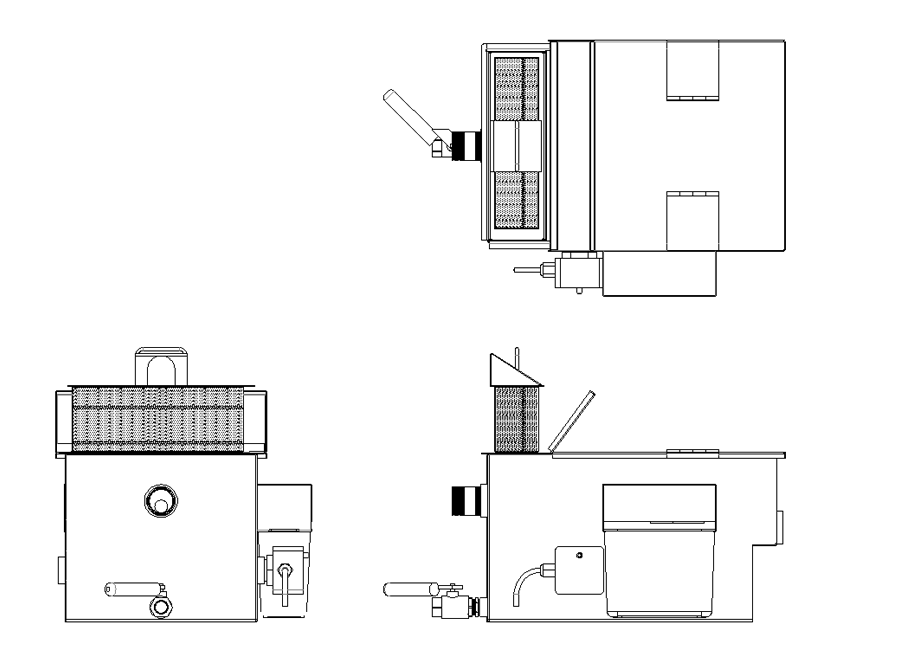

Multi-view technical drawing of the GS40 unit, including plan, front and side elevations.
Technical drawing · PNG
GS60

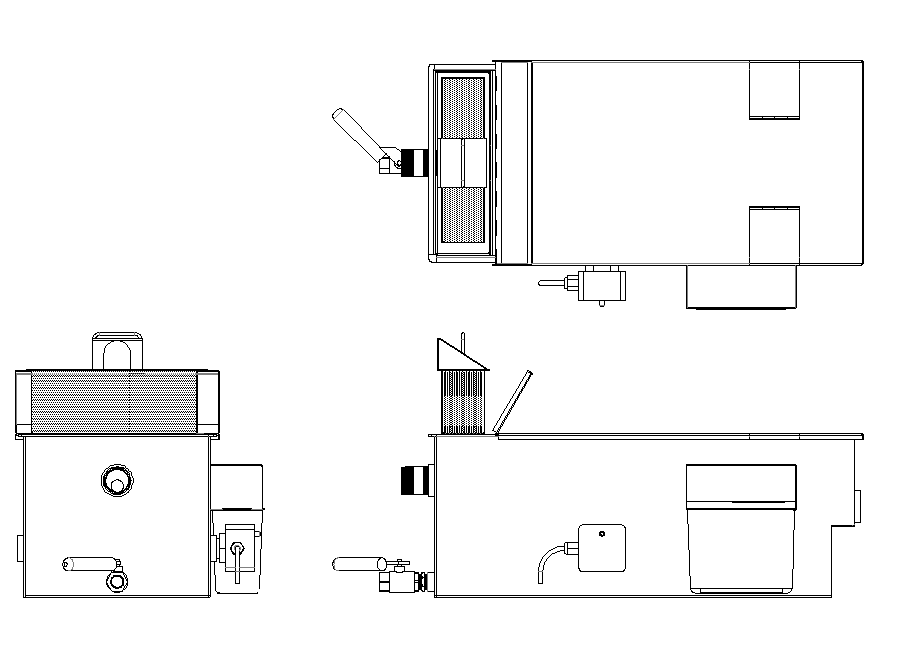

Multi-view technical drawing of the GS60 unit, including plan, front and side elevations.
Technical drawing · PNG
GS80

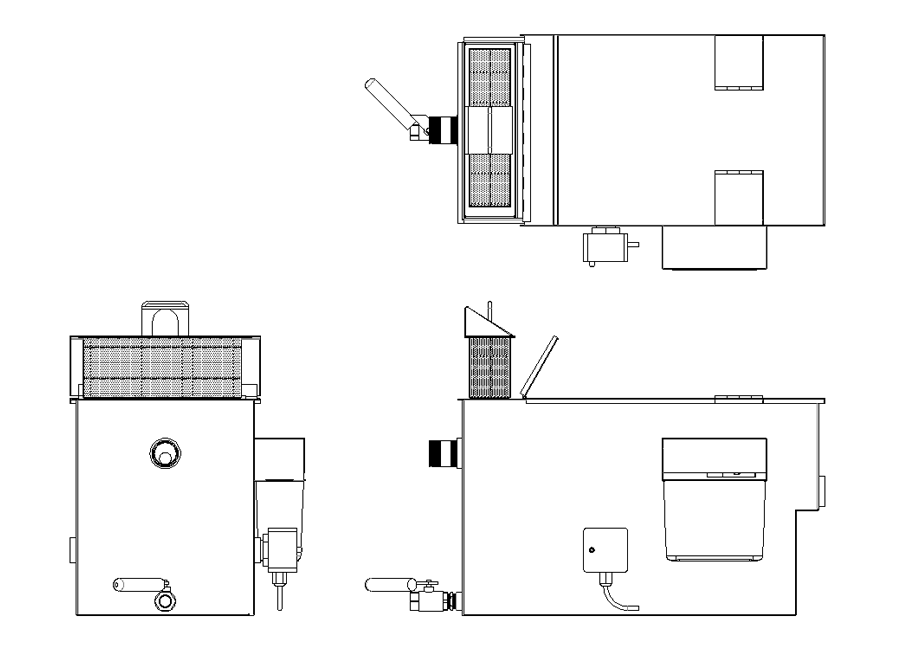

Multi-view technical drawing of the GS80 unit, including plan, front and side elevations.
Need technical assistance? Contact the Goslyn team on 0333 335 0367 or info@goslyn.co.uk.
These downloadable drawings are PNG reference images. Editable CAD files (DWG/DXF) are not included.
